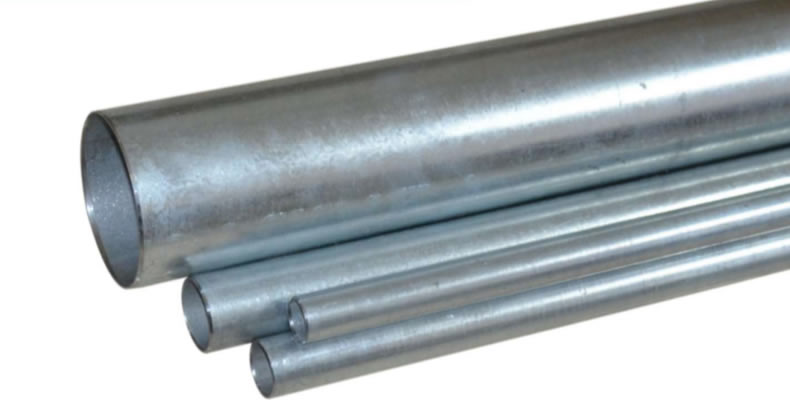

Electrical Metallic Tubing is light gauge steel raceway used to protect wiring from physical damage and fire. It shields electrical fields emitted by the wiring and acts as a ground. The thick coating of zinc galvanization on the interior and exterior of the conduit provides excellent corrosion resistance from environmental, chemical and mechanical degradation.

BBP provides EMT conduit in hex bundles according to the detail specifications in the chart below. Standard length is 10 feet but other lengths are available, each piece comes with a UL label.

Tolerances:

Length: 10Ft (3.05m)±¼” (±6.35mm)

Outside Diameter: ½”-2”±0.005”(±0.13mm): 2½”±0.010”(±0.25mm); 3”±0.015”(±0.38mm); 3½”-4”±0.020”(±051.mm)

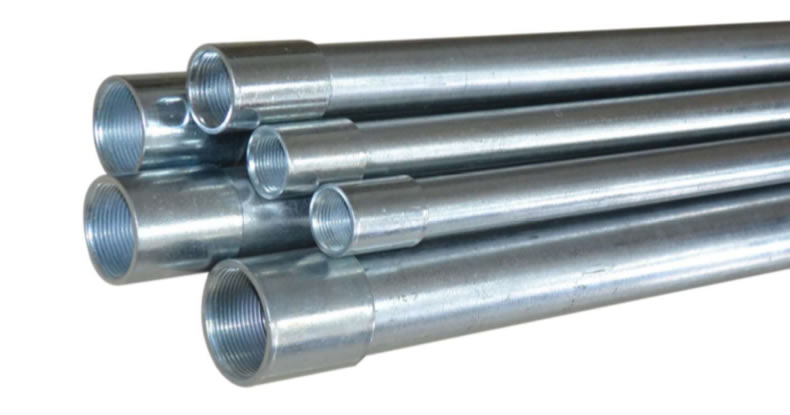

Rigid Metal Conduit is heavy gauge steel raceway used to protect wiring physical damage and fire. It shields electrical fields emitted by the wiring and acts as a ground. The thick coating of zinc galvanization on the interior and exterior of the conduit provides excellent corrosion resistance from environmental, chemical and mechanical degradation. BBP provides Rigid conduit in hex bundles according to the detail specifications in the chart below. Standard length is 10 feet (including coupling) but other lengths are available, each piece of conduit ships with an electrical coupling attached on one end and UL labels.

Tolerances:
Length for Straight Conduit: +¼” (6.35mm) without Coupling; Length for Finished Conduit:10ft (3.05m) with coupling Outside Diameter: ½”-1½”±0.015”(±0.38mm); 2”-6”±1%

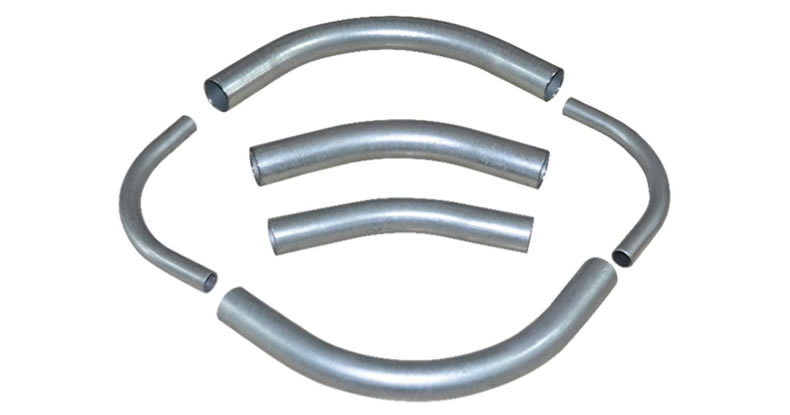

Amercian Standard:
90°,45°, 22.5° & 11.25° Standard Elbows


British Standard:
BS 4568 90°,112.5°, 135° & 157° Standard Elbows
Sizes: 1/2”- 4”

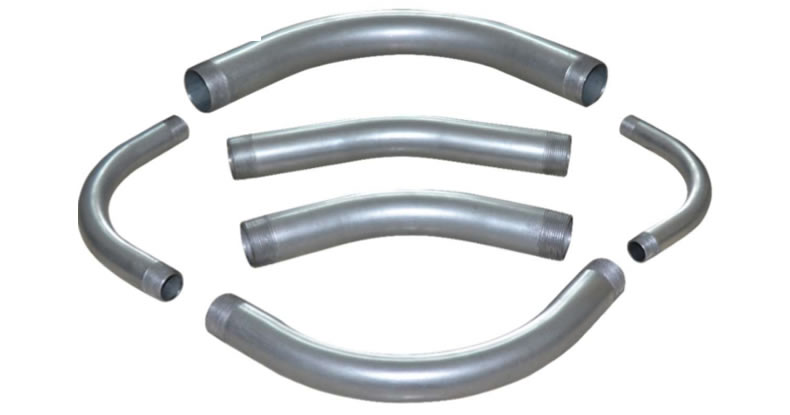

American Standard:
90° and 45° Standard Elbows


British Standard:
BS EN 10241 90°,112.5°, 135° & 157.5° Standard Elbows
Sizes: 1/2”- 4”

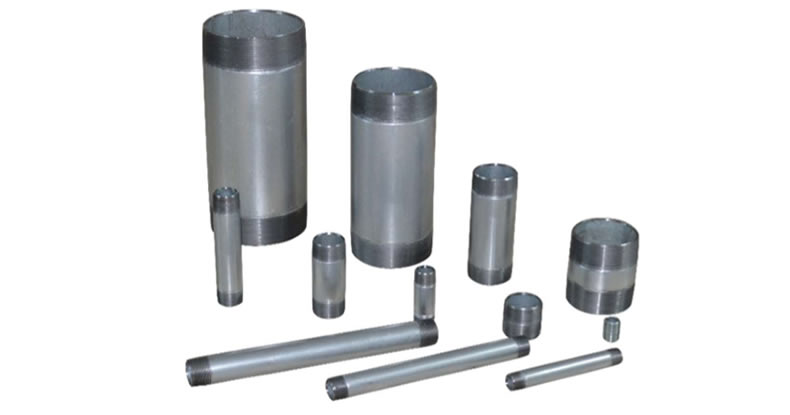

British Standard:
BS EN 10241 Sizes: 1/2”- 6”

American Standard:

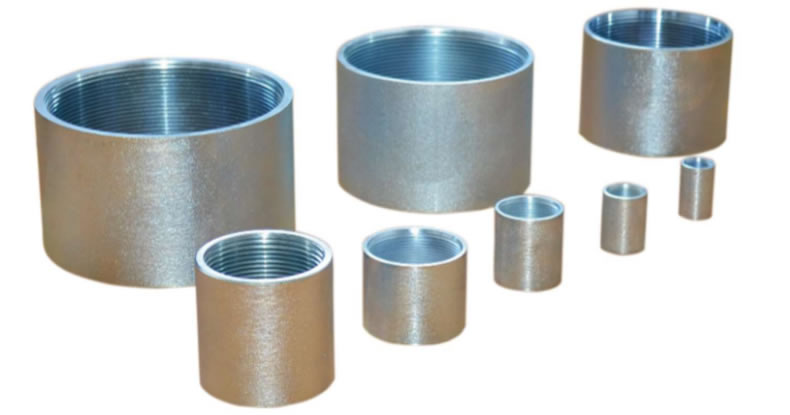

Straight-Tapped Conduit Couplings

British Standard:
BS EN 10241 Sizes: 1/2”- 6”

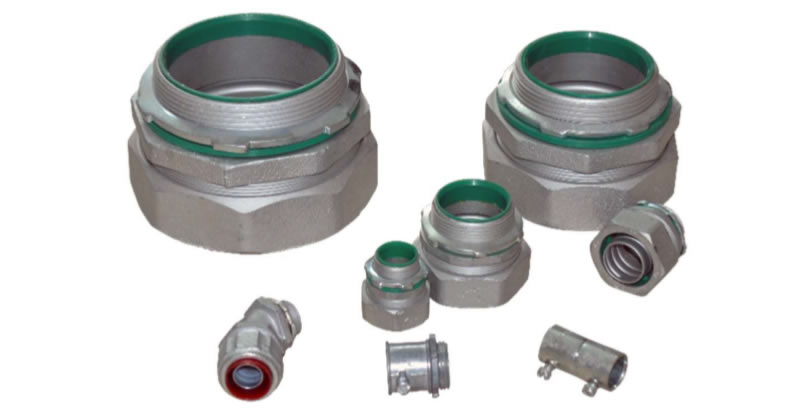

Amercian Standard:
UL514B, CUL, NEMA FB-1
Sizes: 1/2”- 4”
